Инструкция коммутатор Dahua DH-LR2110-8ET-120

Страница PDF

Страница 1

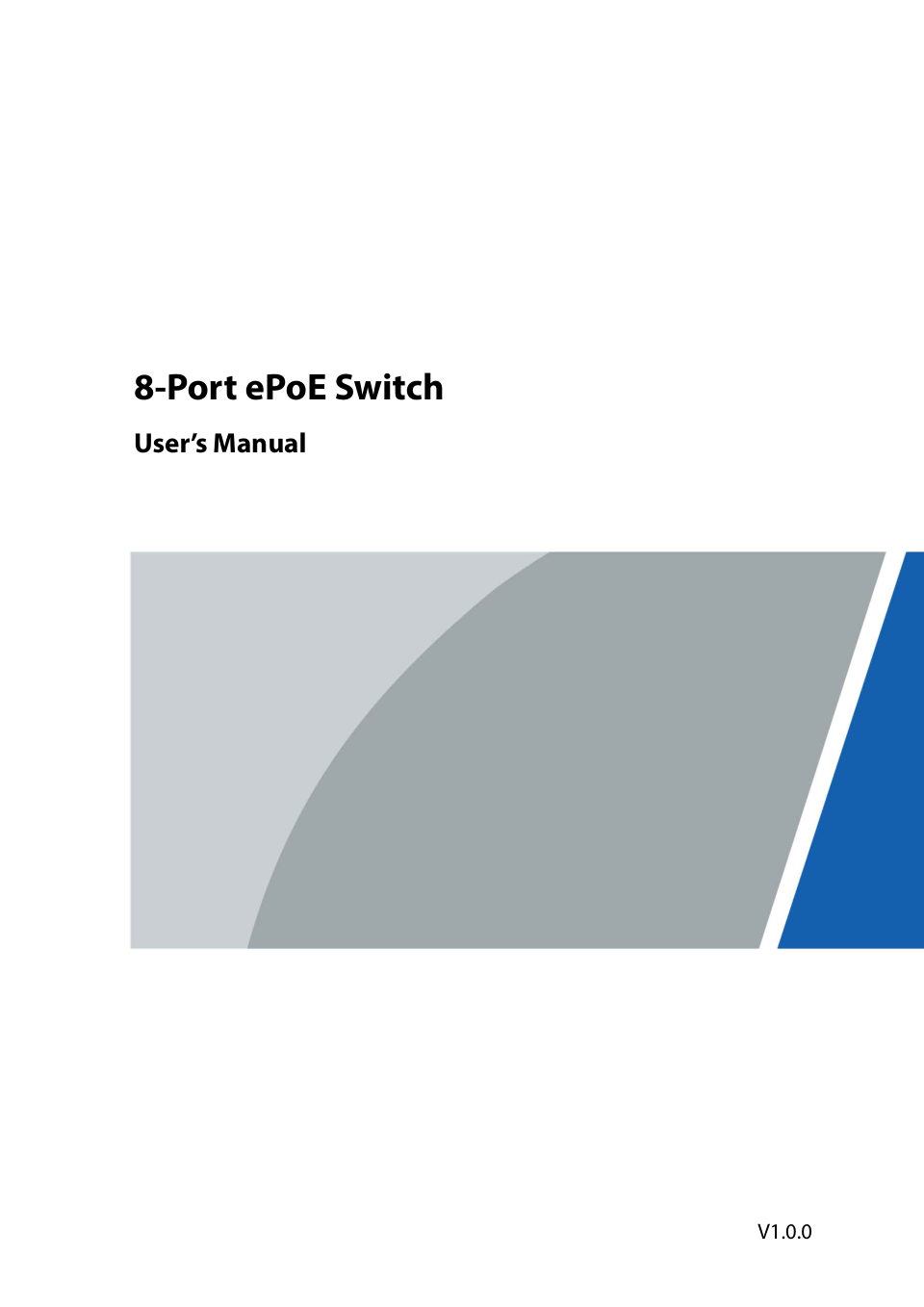

8-Port ePoE Switch User’s Manual V1.0.0

Читать страницу

Страница PDF

Страница 2

Foreword General This manual introduces the installation, functions and operations of the 8-Port ePoE switch (hereinafter referred to as "the device"). Read carefully before using the device, and keep the manual safe fo…

Читать страницу

Страница PDF

Страница 3

 The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit our official website.…

Читать страницу

Страница PDF

Страница 4

Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with…

Читать страницу

Страница PDF

Страница 5

Operation Requirements ● Do not disassemble the device without professional instruction. ● Operate the device within the rated range of power input and output. ● Make sure that the power supply is correct before use. ●…

Читать страницу

Страница PDF

Страница 7

1 Overview 1.1 Introduction 8-Port ePoE Switch is a two-layer hardened switch, which supports long distance Ethernet power supply. It provides eight 10/100 Mbps Ethernet ports, one 1000 Mbps Ethernet port and one 1000 M…

Читать страницу

Страница PDF

Страница 8

1.3 Typical Application Figure 1-1 Typical application 7

Читать страницу

Страница PDF

Страница 9

2 Structure 2.1 Front Panel Figure 2-1 Front panel Table 2-1 Panel description No. Name Description Power indicator light. 1 PWR Used as PoE power supply status indicator light as well, refer to the following table for…
