Инструкция коммутатор Dahua DH-LR2226-24ET-360

Страница PDF

Страница 1

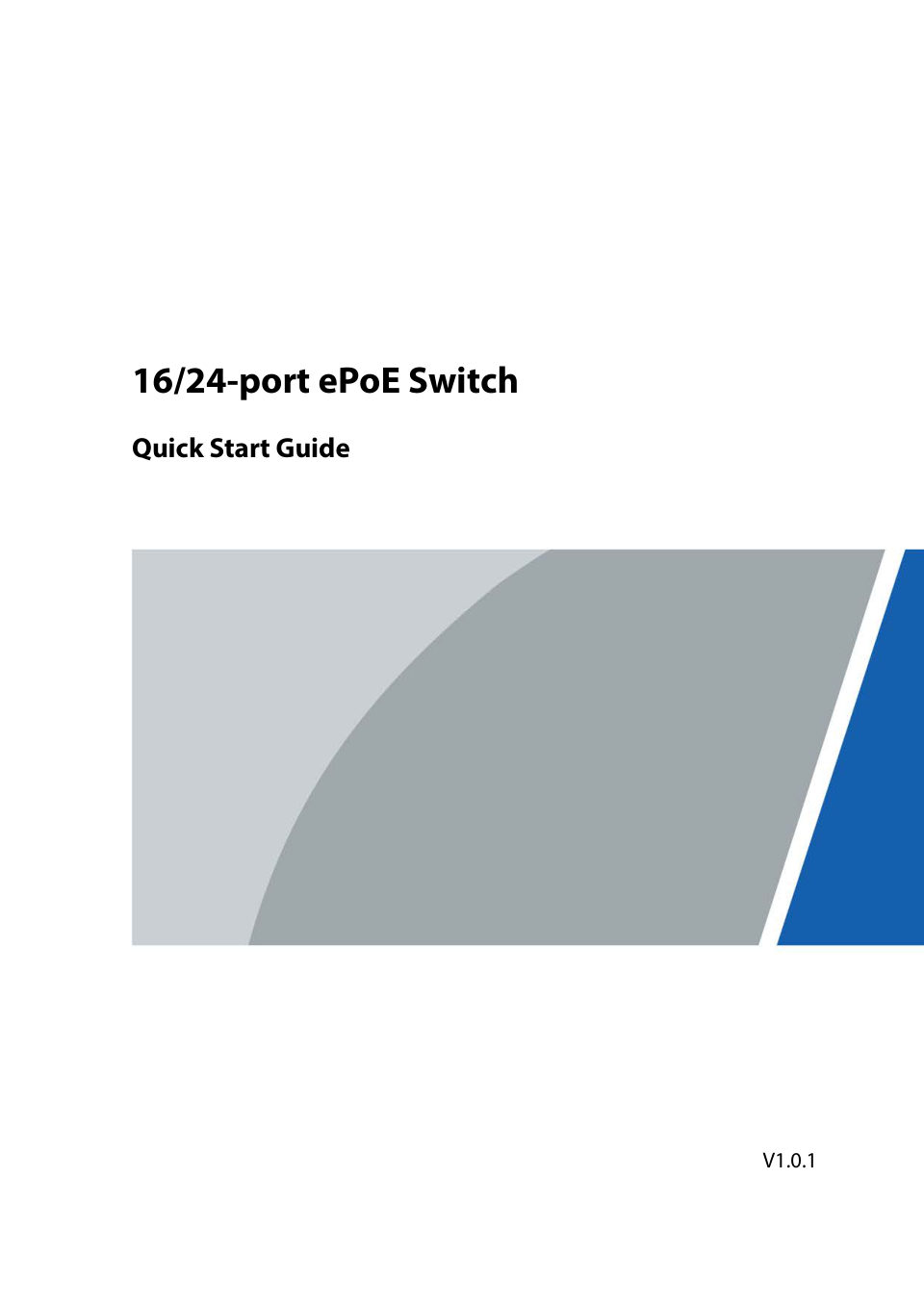

16/24-port ePoE Switch Quick Start Guide V1.0.1

Читать страницу

Страница PDF

Страница 2

Foreword General This manual introduces the installation, functions and operations of the 16/24-port ePoE switch (hereinafter referred to as "the Device"). Read carefully before using the device, and keep the manual saf…

Читать страницу

Страница PDF

Страница 3

the electronic version and the paper version. ● All designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the…

Читать страницу

Страница PDF

Страница 4

Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with…

Читать страницу

Страница PDF

Страница 5

Operation Requirements ● Do not disassemble the device without professional instruction. ● Operate the device within the rated range of power input and output. ● Make sure that the power supply is correct before use. ●…

Читать страницу

Страница PDF

Страница 7

1 Overview 1.1 Introduction The Device is a layer-2 commercial switch. It provides a high-performance switching engine and large buffer memory to ensure smooth video stream transmission. With a full-metal design, the De…

Читать страницу

Страница PDF

Страница 8

2 Port and Indicator 2.1 Front Panel The following figure is for reference only, and might differ from the actual device. Figure 2-1 Front panel Table 2-1 Description of the front panel No. Name Description Supports 10/…

Читать страницу

Страница PDF

Страница 9

2.2 Rear Panel Figure 2-2 Rear panel Table 2-2 Description of the rear panel No. Name Description 1 Power switch Powers on and off the Device. 2 Power socket Supports 100–240 VAC. 3 Ground terminal GND. 3
