Инструкция коммутатор Dahua DH-PFS3008-8ET-60

Страница PDF

Страница 1

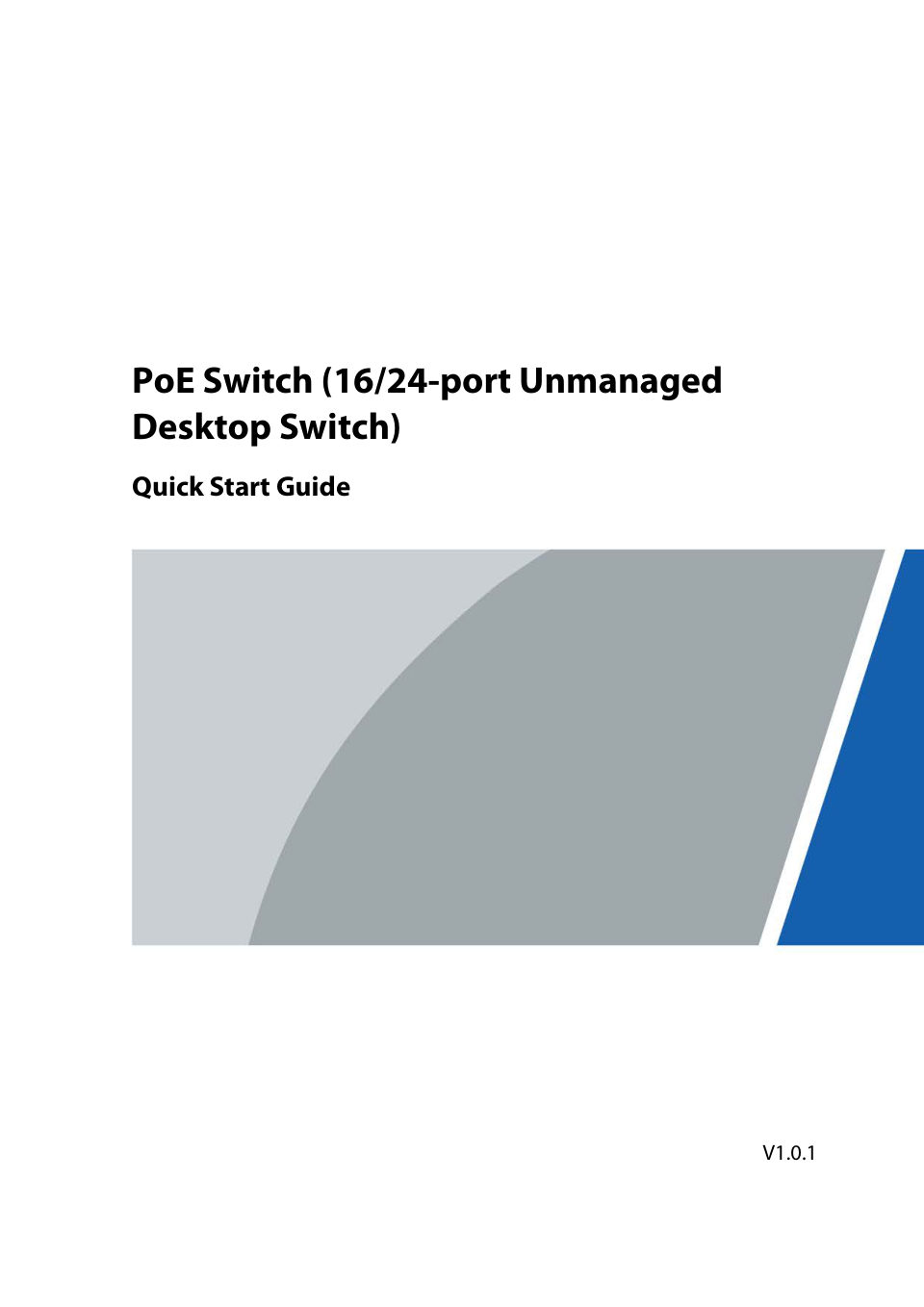

PoE Switch (16/24-port Unmanaged Desktop Switch) Quick Start Guide V1.0.1

Читать страницу

Страница PDF

Страница 2

Foreword General This manual mainly introduces the hardware, installation, and wiring steps of the 16/24-port unmanaged desktop switch (hereinafter referred to as "the device"). Safety Instructions The following categor…

Читать страницу

Страница PDF

Страница 3

 All designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for th…

Читать страницу

Страница PDF

Страница 4

Important Safeguards and Warnings This manual was designed to help you use our product properly. To avoid danger and property damage, read the manual carefully before using the product, and we highly recommend you keep…

Читать страницу

Страница PDF

Страница 5

 To ensure heat dissipation, the gap between the device and the surrounding area should not be less than 10 cm on the sides and 10 cm on top of the device.  When installing the device, make sure that the power plug an…

Читать страницу

Страница PDF

Страница 7

1 Overview 1.1 Introduction The device is a layer-2 commercial switch. It provides a high-performance switching engine and large buffer memory to ensure smooth video stream transmission. With a full-metal design, the de…

Читать страницу

Страница PDF

Страница 8

2 Port and Indicator 2.1 Front Panel The following figure is for reference only, and might differ from the actual product. Figure 2-1 Front panel Following are all the ports and indicators on the front panel of the 16/2…

Читать страницу

Страница PDF

Страница 9

No. Description Single-port connection status indicator (Link) 5 ● On: Connected to device. ● Off: Not connected to device. PoE port status indicator 6 ● On: Powered by PoE. ● Off: Not powered by PoE. Uplink port connec…
