Инструкция коммутатор Dahua DH-PFS3110-8ET-96

Страница PDF

Страница 1

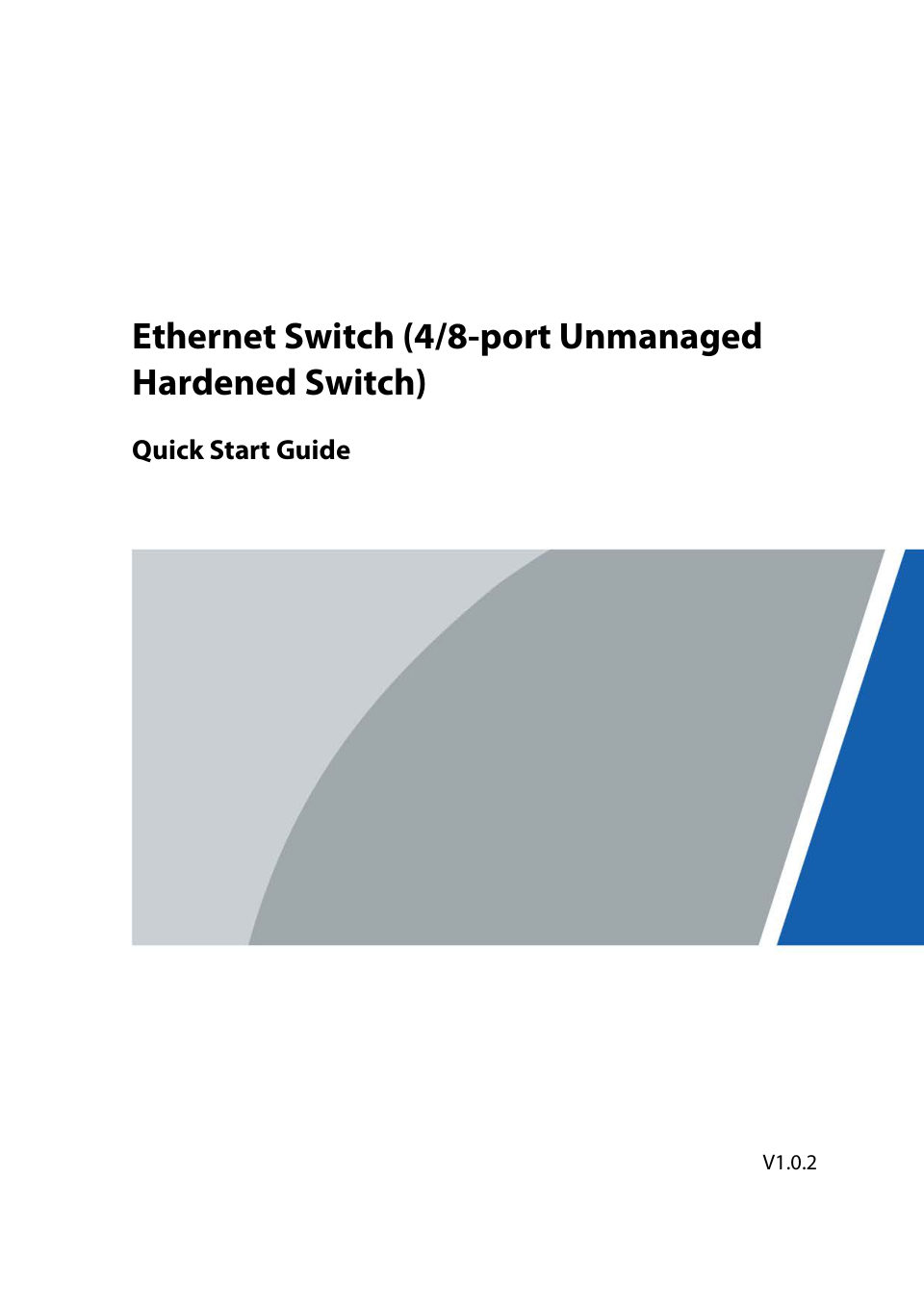

Ethernet Switch (4/8-port Unmanaged Hardened Switch) Quick Start Guide V1.0.2

Читать страницу

Страница PDF

Страница 2

Foreword General This manual mainly introduces the hardware, installation, and wiring steps of the 4/8-port unmanaged hardened switch (hereinafter referred to as "the device"). Safety Instructions The following categori…

Читать страницу

Страница PDF

Страница 3

● The manual will be updated according to the latest laws and regulations of related jurisdictions. For detailed information, see the paper user’s manual, use our CD-ROM, scan the QR code or visit our official website.…

Читать страницу

Страница PDF

Страница 4

Important Safeguards and Warnings The manual helps you to use our product properly. To avoid danger and property damage, read the manual carefully before using the product, and we highly recommend you to keep the manual…

Читать страницу

Страница PDF

Страница 5

Maintenance Requirements ● Power off the device before maintenance. ● Mark key components on the maintenance circuit diagram with warning signs. IV

Читать страницу

Страница PDF

Страница 7

1 Overview 1.1 Introduction The device is a hardened switch. It provides a high-performance switching engine and large buffer memory to ensure smooth video stream transmission. With its full-metal and fanless design, th…

Читать страницу

Страница PDF

Страница 8

2 Port and Indicator 2.1 Front Panel The following figures are for reference only, and might differ from the actual product. Figure 2-1 Front panel (with PoE) Figure 2-2 Front panel (without PoE) Following are all the p…

Читать страницу

Страница PDF

Страница 9

No. Description 2 10 Mbps/100 Mbps/1000 Mbps self-adaptive uplink Ethernet port. 3 1000 Mbps self-adaptive uplink optical port. Optical port connection or data transmission status indicator (Link/Act). ● On: Connected t…
