Инструкция коммутатор Dahua DH-PFS4226-24ET-360

Страница PDF

Страница 1

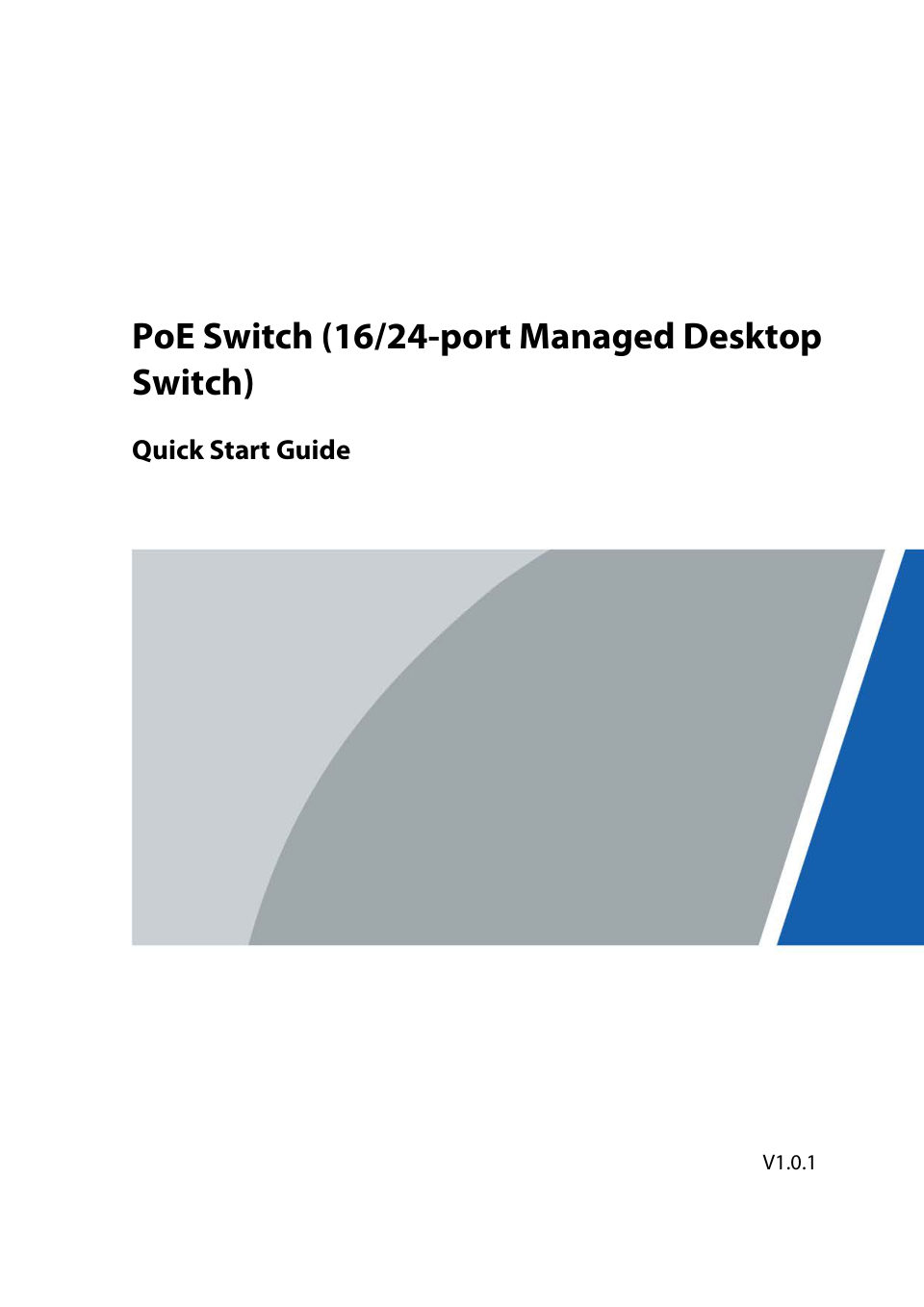

PoE Switch (16/24-port Managed Desktop Switch) Quick Start Guide V1.0.1

Читать страницу

Страница PDF

Страница 2

Foreword General This manual mainly introduces the hardware, installation, and wiring steps of the 16/24-port managed desktop switch (hereinafter referred to as "the Device"). Safety Instructions The following categoriz…

Читать страницу

Страница PDF

Страница 3

using the device. ● If there is any uncertainty or controversy, we reserve the right of final explanation. II

Читать страницу

Страница PDF

Страница 4

Important Safeguards and Warnings This section introduces content covering the proper handling of the Device, hazard prevention, and prevention of property damage. Read carefully before using the Device, comply with the…

Читать страницу

Страница PDF

Страница 5

● Connect class I electrical appliances to a power socket with protective earthing. ● Do not block the ventilator of the device with objects, such as newspapers, table clothes or curtains. ● Do not put open flames, such…

Читать страницу

Страница PDF

Страница 7

1 Overview 1.1 Introduction The Device is a layer-2 commercial switch. It provides a high-performance switching engine and large buffer memory to ensure smooth video stream transmission. With a full-metal design, the De…

Читать страницу

Страница PDF

Страница 8

2 Port and Indicator 2.1 Front Panel The following figure is for reference only, and might differ from the actual device. Figure 2-1 Front panel Following are all the ports and indicators on the front panel of the 16/24…

Читать страницу

Страница PDF

Страница 9

2.2 Rear Panel The following figure is for reference only, and might differ from the actual device. Figure 2-2 Rear Panel Table 2-2 Description of the rear panel No. Description 1 Power switch. 2 Power port, supports 10…
