Инструкция точка доступа Tenda i29

Страница PDF

Страница 1

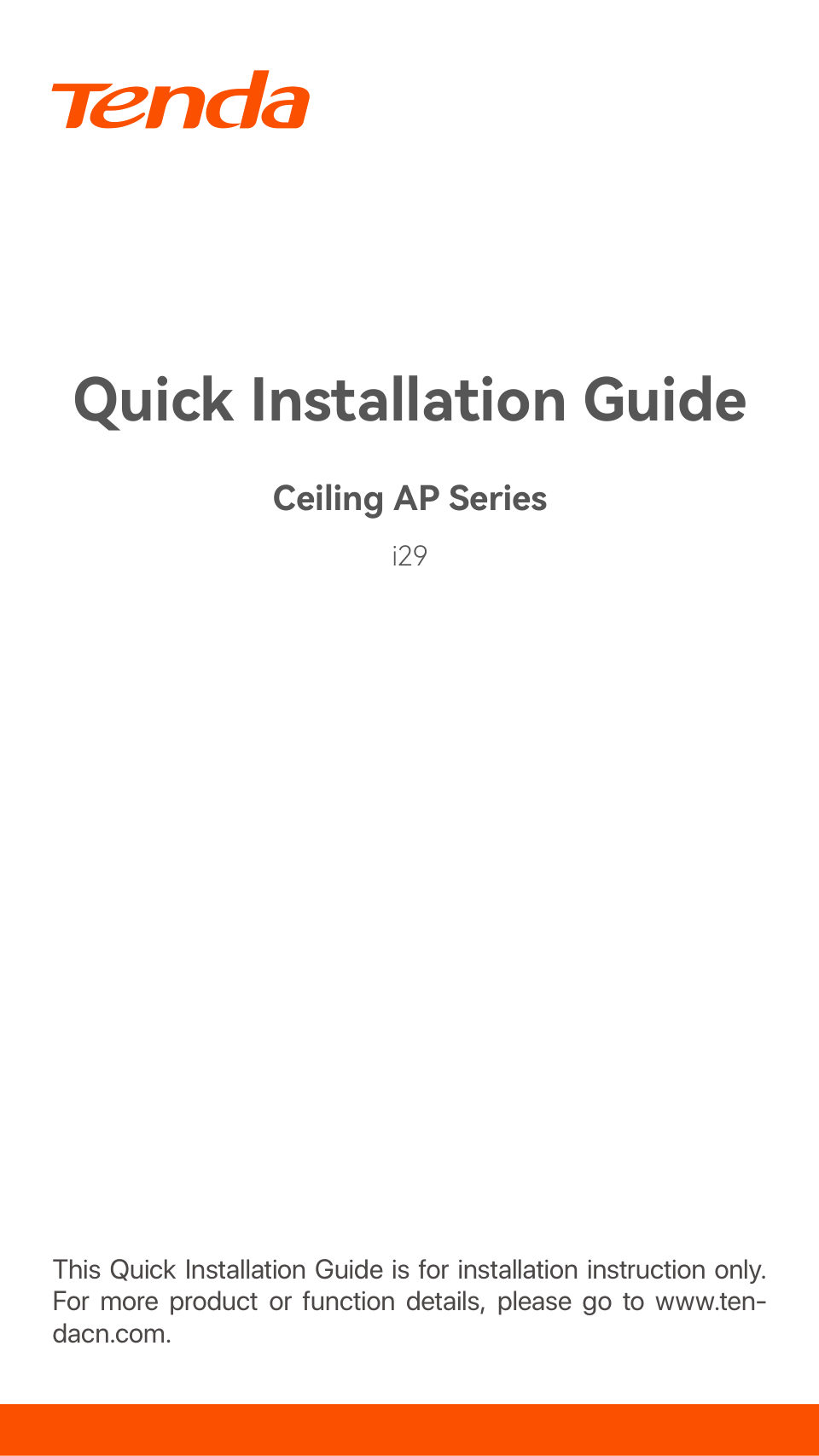

Quick Installation Guide Ceiling AP Series i29 This Quick Installation Guide is for installation instruction only. For more product or function details, please go to www.ten- dacn.com.

Читать страницу

Страница PDF

Страница 2

Package contents The package contents of all models are listed here. The actual contents may vary by model. Wireless ceiling AP × 1 Bracket × 1 + Power adapter × 1 Plastic anchors + (Length: 26.4 mm; Diameter: 2.4 mm) P…

Читать страницу

Страница PDF

Страница 3

1.Getting to know your AP Port and button RESET LAN1 LAN0/PoE RESET LAN0/PoE LAN1 Port/Button Description Reset button, used to restore the AP to factory settings. When the AP is idle, hold down this button with Reset a…

Читать страницу

Страница PDF

Страница 4

LED indicator LED indicator LED indicator Status Description The AP completes startup and is Solid on waiting to be managed by the White controller. Blinking The AP is starting up. The AP is managed by the Solid on cont…

Читать страницу

Страница PDF

Страница 5

2.Installing your AP Tips − You may need a rubber hammer, a marker, a hammer drill, a drill bit, a screwdriver, and a ladder for the installation. Please prepare them yourself. − The equipment supports ceiling at height…

Читать страницу

Страница PDF

Страница 6

Fix the bracket.❸ Knock the plastic anchors into the holes using the rubber hammer. Align the screw holes in the bracket with the holes in the ceiling, and use the included screws to fix the bracket. Plastic Anchor Moun…

Читать страницу

Страница PDF

Страница 7

Align the slots of the AP with the hooks of the bracket.❻ Hook that the AP is firmly seated onto the bracket. Turn the❼Ensure AP clockwise until it is fixed securely onto the bracket.

Читать страницу

Страница PDF

Страница 8

3. Supplying power to your APs Method 1: Power the AP with a standard PoE power supply device Use an Ethernet cable to connect the LAN0/PoE port of the AP to a PoE power supply device. A PoE switch is used for illustrat…
