Инструкция Toshiba DT02

Страница PDF

Страница 1

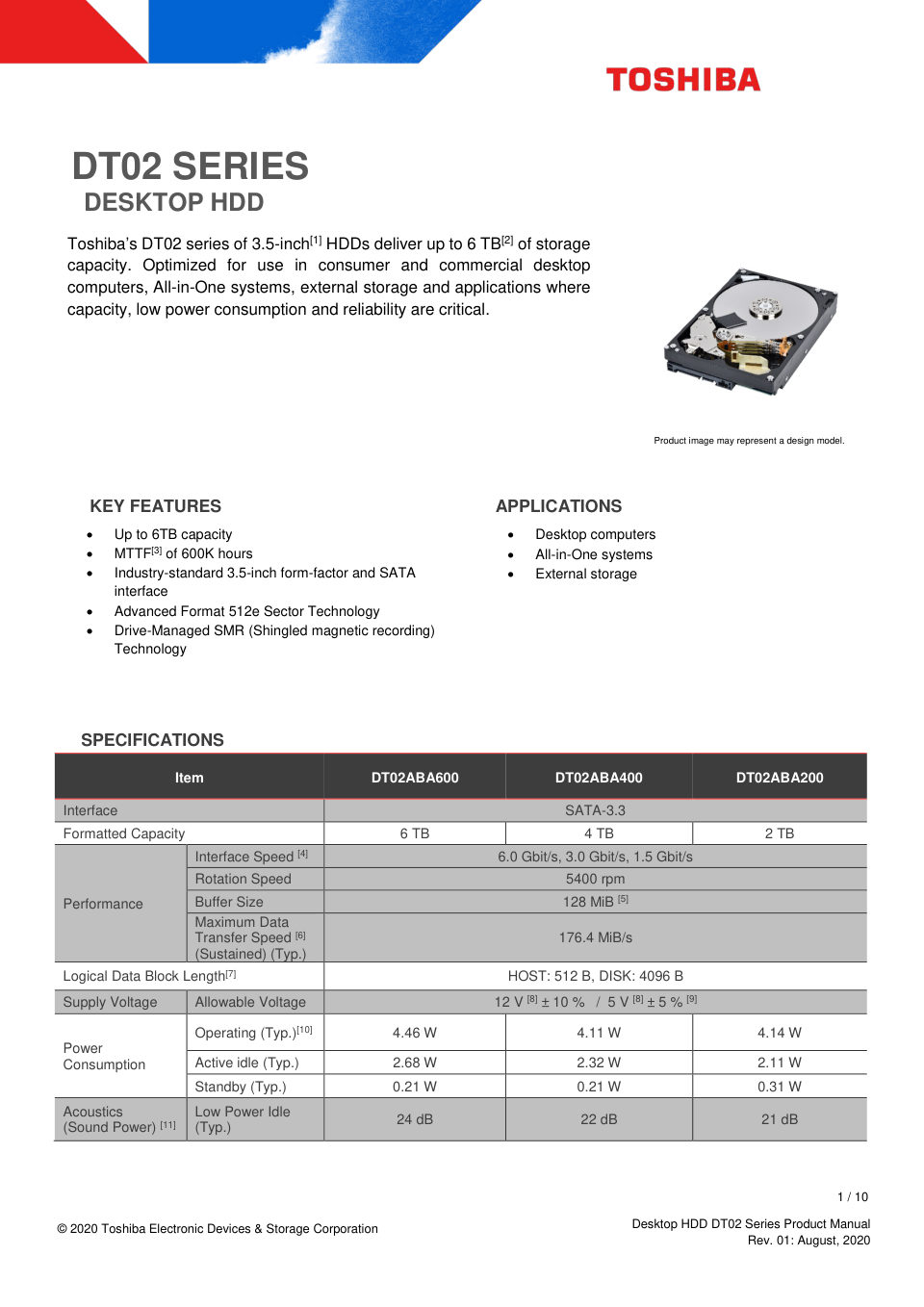

DT02 SERIES DESKTOP HDD Toshiba’s DT02 series of 3.5-inch[1] HDDs deliver up to 6 TB[2] of storage capacity. Optimized for use in consumer and commercial desktop computers, All-in-One systems, external storage and appli…

Читать страницу

Страница PDF

Страница 2

ENVIRONMENTAL LIMITS Item Specification Ambient Operating 0 °C to 55 °C (No condensation) temperature Non-Operating [13] [14] - 40 °C to 65 °C (No condensation) Enclosure surface Operating [12] 0 °C to 60 °C (No condens…

Читать страницу

Страница PDF

Страница 3

MARKING 3 / 10 © 2020 Toshiba Electronic Devices & Storage Corporation Desktop HDD DT02 Series Product Manual Rev. 01: August, 2020

Читать страницу

Страница PDF

Страница 4

SAFETY / EMI STANDARDS Title Region UL USA (Underwriters Laboratories) CSA Canada (Canadian Standard Association) TÜV Germany (Technischer Überwachungs Verein) BSMI Taiwan (Bureau of Standards, Metrology and Inspection)…

Читать страницу

Страница PDF

Страница 5

MECHANICAL SPECIFICATIONS Item DT02ABA600V DT02ABA400V DT02ABA200V Width 101.6 mm ± 0.25 mm Height (Max) 26.1 mm Length (Max) 147.0 mm Weight (Max) 680 g 650 g 440 g [Unit: mm] 5 / 10 © 2020 Toshiba Electronic Devices &…

Читать страницу

Страница PDF

Страница 6

INTERFACE CONNECTOR 6 / 10 © 2020 Toshiba Electronic Devices & Storage Corporation Desktop HDD DT02 Series Product Manual Rev. 01: August, 2020

Читать страницу

Страница PDF

Страница 7

INTERFACE CONNECTOR (SATA plug) SIGNAL ALLOCATION Segment Pin No. Pin Definition S1 GND 2nd Mate S2 A+ Differential Pair A from PHY (Device Rx+) S3 A- Differential Pair A from PHY (Device Rx-) Signal Segment S4 GND 2nd…

Читать страницу

Страница PDF

Страница 8

COMMAND TABLE (Part 1) Op-Code Command Name E5h / 98h CHECK POWER MODE B1h DEVICE CONFIGURATION 92h/93h DOWNLOAD MICROCODE /DOWNLOAD MICROCODE DMA 90h EXECUTE DIAGNOSTICS E7h FLUSH CACHE EAh FLUSH CACHE EXT ECh IDENTIFY…

Читать страницу
