Инструкция винтоверт Makita DF032DWME CXT 12V

Страница PDF

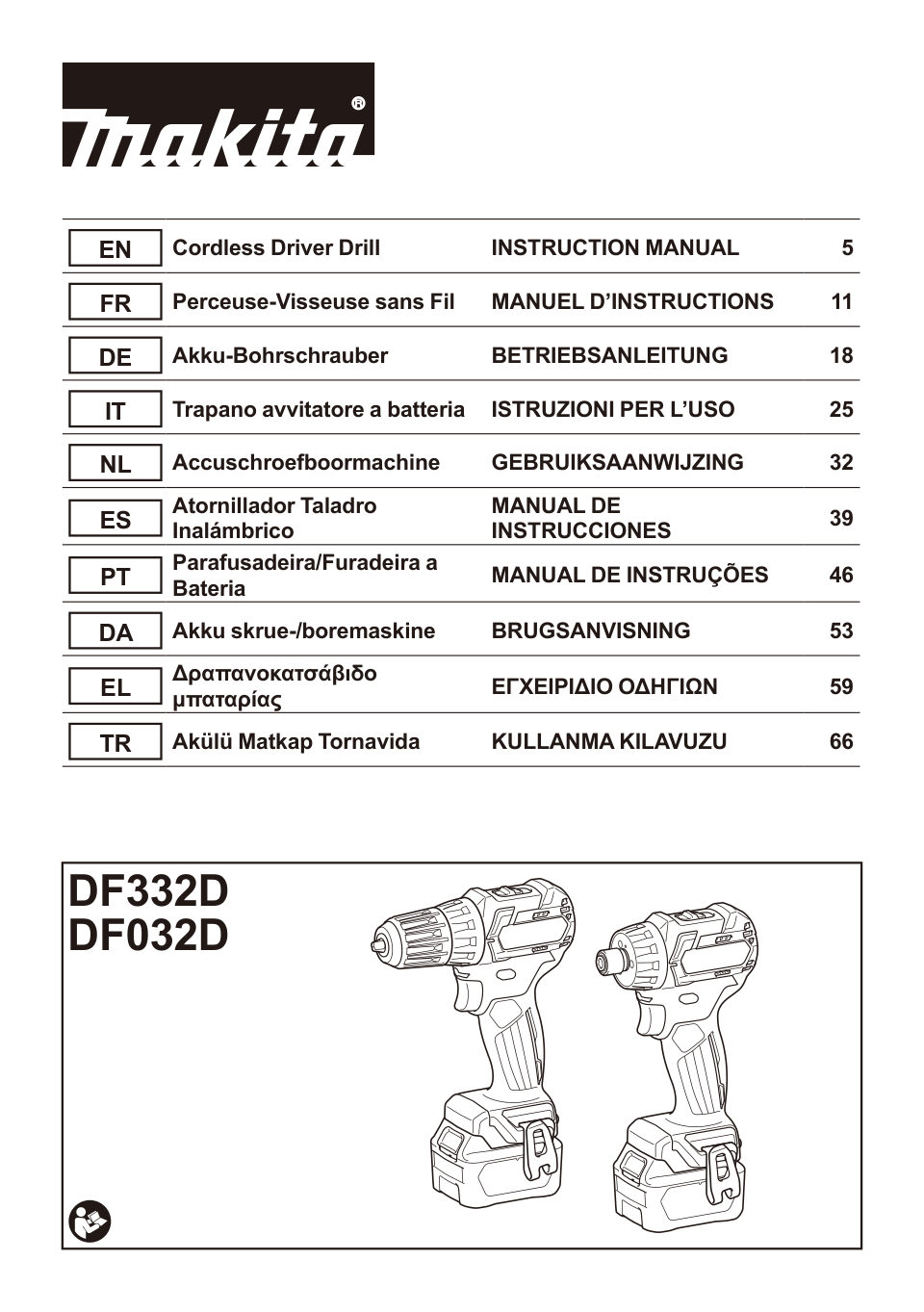

Страница 1

EN Cordless Driver Drill INSTRUCTION MANUAL 5 FR Perceuse-Visseuse sans Fil MANUEL D’INSTRUCTIONS 11 DE Akku-Bohrschrauber BETRIEBSANLEITUNG 18 IT Trapano avvitatore a batteria ISTRUZIONI PER L’USO 25 NL Accuschroefboor…

Читать страницу

Страница PDF

Страница 5

ENGLISH (Original instructions) SPECIFICATIONS Model: DF332D DF032D Drilling capacities Steel 10 mm Wood 28 mm Fastening Wood screw 5.1 mm x 63 mm capacities Machine screw M6 No load speed High (2) 0 - 1,500 min -1 Low…

Читать страницу

Страница PDF

Страница 6

General power tool safety warnings result in a risk of overheating, possible burns and even an explosion. 4. If electrolyte gets into your eyes, rinse them WARNING: Read all safety warnings and out with clear water and…

Читать страницу

Страница PDF

Страница 7

Installing or removing battery Indicator lamps Remaining cartridge capacity Lighted Off CAUTION: Always switch off the tool before 75% to 100% installing or removing of the battery cartridge. CAUTION: Hold the tool and…

Читать страницу

Страница PDF

Страница 8

This tool has a reversing switch to change the direction Position of Speed Torque Applicable of rotation. Depress the reversing switch lever from the speed operation A side for clockwise rotation or from the B side for…

Читать страницу

Страница PDF

Страница 9

To remove the driver bit, pull the sleeve in the direction Drilling operationof the arrow and pull the driver bit out. NOTE: If the driver bit is not inserted deep enough First, turn the adjusting ring so that the point…

Читать страницу

Страница PDF

Страница 10

Using holster NOTE: Some items in the list may be included in the tool package as standard accessories. They may Optional accessory differ from country to country. CAUTION: When using the holster, remove a driver bit/dr…

Читать страницу

Страница PDF

Страница 11

FRANÇAIS (Instructions originales) SPÉCIFICATIONS Modèle : DF332D DF032D Capacités de Acier 10 mm perçage Bois 28 mm Capacités de Vis à bois 5,1 mm x 63 mm serrage Vis mécanique M6 Vitesse à vide Élevée (2) 0 à 1 500 mi…

Читать страницу
