Инструкция коммутатор Mercusys MS118CP

Страница PDF

Страница 1

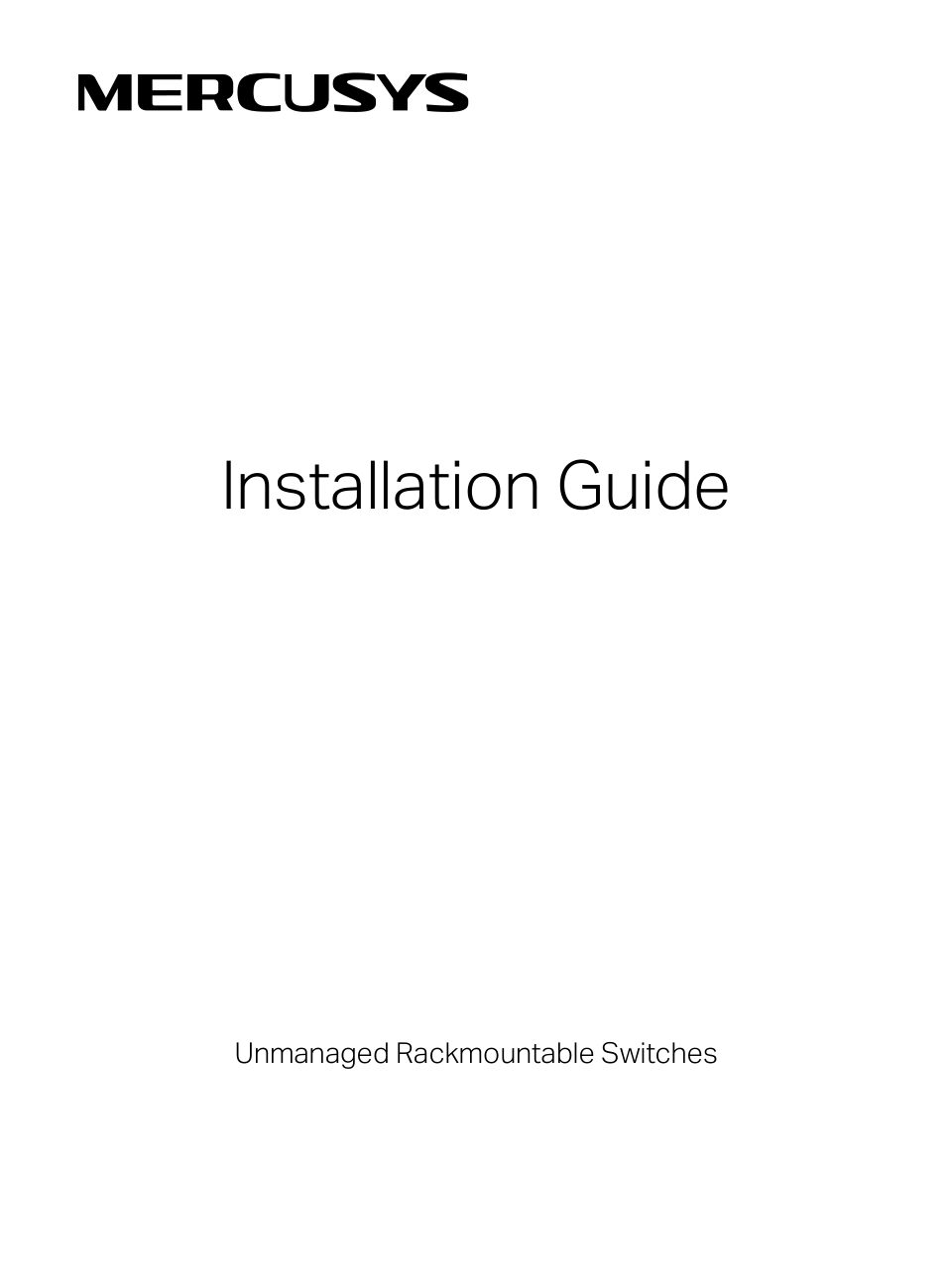

Installation Guide Unmanaged Rackmountable Switches

Читать страницу

Страница PDF

Страница 3

About this Installation Guide This Installation Guide describes the hardware characteristics, installation methods and the points that should be attended to during installation. This Installation Guide is structured as…

Читать страницу

Страница PDF

Страница 5

Unmanaged Rackmountable Switches Chapter 1 Introduction 1.1 Product Overview The Unmanaged Switch provides you with a low-cost, easy-to-use, high-performance, seamless, and standard upgrade to improve your network to 10…

Читать страницу

Страница PDF

Страница 6

Unmanaged Rackmountable Switches Figure 1-4 Front Panel of MS120GP LED DIP Switch 10/100/1000Mbps SFP Port RJ45 Port (Port 1-18) (Port 19-20) Figure 1-5 Front Panel of MS126CP LED DIP Switch 10/100Mbps 10/100/1000Mbps S…

Читать страницу

Страница PDF

Страница 7

Unmanaged Rackmountable Switches LED Indication LED Indication On: The switch is powered on. Off: The switch is powered off or power supply is abnormal. Power or PWR Flashing: Power supply is abnormal/Loop Prevention fu…

Читать страницу

Страница PDF

Страница 8

Unmanaged Rackmountable Switches ■ Rear Panel The rear panel is shown as the following figure. Here we take MS126CP as an example. Figure 1-7 Rear Panel Kensington Security Slot Grounding Terminal Power Socket Kensingto…

Читать страницу

Страница PDF

Страница 9

Unmanaged Rackmountable Switches Chapter 2 Installation 2.1 Package Contents Make sure that the package contains the following items. If any of the listed items is damaged or missing, contact your distributor. The figur…

Читать страницу

Страница PDF

Страница 10

Unmanaged Rackmountable Switches Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property chang…
